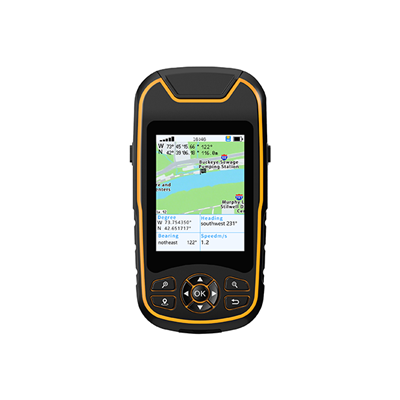

A8
2025-9-25
GNSS Features
Satellite system: GPS+BEIDOU+GALILEO+QZSS.
Pass: Maximum 512 channels.
Positioning accuracy: Single machine positioning, typical value 2 meters;
Star rating difference 1 meter (SBAS).
Positioning time: Hot start Typical value 2 seconds;
Cold start Typical value is 28 seconds.
Updated Rate: 1Hz.
In-store: 16GB.
Navigation Features
Waypoint: 5,000 waypoints can be stored in a single waypoint file, supporting 1,000 waypoint files.
Trail: A single track file can store 10,000 waypoints and supports 1,000 track files.
Route: A single route file can store 1,000 waypoints and supports 1,000 route files.
Map: World Basic Map (Level 9) and Mainland American Basic Map (Level 12), support user-defined maps.
Navigation methods: waypoint navigation, route navigation, track navigation, GPS compass navigation.
Functional Features
Coordinate system: WGS84, UTM.
Luo Pan: GPS compass.
Air pressure gauge: Supported.
Area measurement: Supported. The measurement results can be exported to GPX files.
Length measurement: Supported. The measurement results can be exported to GPX files.
Slope measurement: Supported.
Data format: GPX format file.
Physical characteristics
Ruler Inch: 145mm×78mm×26mm.
Weight: 210g (including battery).
Housing material: industrial grade material.
Waterproof grade: IP66.
Working temperature: -20℃-+60℃.
Storage temperature: -30℃-+70℃.
Fall: 1.5 meters (cement floor).
Screen features
Type: Highlight TFT color display.
Size: 3.2″.
Resolution: 240×320 QVGA.
Color: 65K color TFT.
Power Supply Features
Power supply type: 3.7V 4000mah rechargeable lithium battery.
Charging adapter output: 5V1A.
Use time: greater than 20 hours.
Standard configuration
Host, data cable, manual (including warranty card), certificate of conformity, lanyard, packaging box, special lithium battery, USB power adapter.
Optional accessories: portable soft bag, car power plug.
